Ultrasonic/Megasonic Probes


Chemical Resistance Charts
bx-408
(Trasnmitter only)
This is an all Stainless Steel  probe for most ultrasonic and some megasonic cleaning solutions.  It can be manufactured tank mountable for the transmitters.  The probe has one component that come in contact with solutions:
Rod:   made of 316 Stainless Steel, 1/2" O.D., 14" L or custom length, sealed

The probe includes a 6' PVC cable with a plug to connect to the meter or transmitter.   Custom cable lengths are available.

pb-308/bx-308 (megasonics)
This is an all Quartz  probe for megasonic cleaning solutions.  It can be manufactured hand-held for the portable meters (pb) or tank mountable (bx) for the transmitters.  The probe has one component that come in contact with solutions:
Rod:   made of Quartz, 1/2" O.D., 14" L or custom length, sealed

The probe includes a 6' PVC cable with a plug to connect to the meter or transmitter.   Custom cable lengths are available.

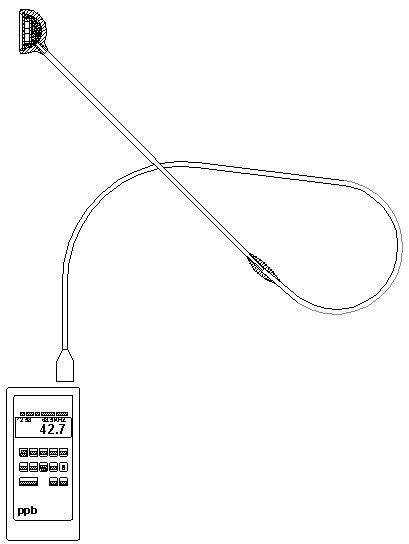

pb-208 (ultrasonics)
This is the a probe for ultrasonic cleaning solutions, including Alcohols, IPA, NMP, & Acetone.

The probe has three components that come in contact with solutions:
Half Sphere: made of Ethylene Propylene (EPDM), angled at 0° (NEW)  with the probe tube, 2" diameter, black.
Tube: made of Teflon wrapped 1/4" O.D. 316 stainless steel, 20" or custom length.
Lens: made of Quartz

The hand-held version includes a 6' PVC cable with a plug to connect to the meter.   Custom cable lengths are available.

Note:  Picture shows older version angled at 45°.
