Ultrasonic-Megasonic Monitoring Transmitter

"Smart monitoring of your cleaning tanks"
Continuously monitors cavitation energy and frequency in Ultrasonic and Megasonic cleaning tanks.

  • 4 to 20 mA & 0 to 10 Vdc Energy Outputs
  • 4 to 20 mA & 0 to 10 Vdc Frequency Outputs
  • 0 to 5 MHz (5000 kHz) Frequency Range
  • Din Rail and Wall Mountable
  •
    The bx-208/bx-308 is a panel-mount-ready unit designed to continuously monitor cavitation energy and frequency in your ultrasonic and megasonic cleaning tanks.

    It is designed to provide a non-isolated 4 to 20 mA current output and a 0 to 10 VDC output which are proportional to the cavitation and the ultrasonic/megasonic energy density present within a cleaning tank.   The output signal may be scaled by the user to meet a specific energy range.

    The unit also provides a non-isolated 4 to 20 mA current output and a 0 to 10 VDC output which are proportional to the Ultrasonic-Megasonic frequency.

    It's construction allows for easy installation, and can be DIN Rail or wall mounted.

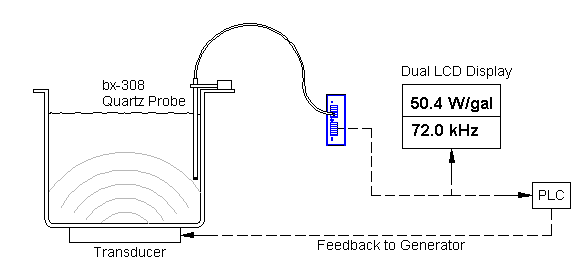

    The transmitter may be connected to a PLC or external dual LCD, to display both energy and frequency, measured from a probe that is mounted to the tank.

    In addition to passive monitor capabilities, the transmitter may also be used to maintain and control the tank energy levels by including a feedback to the transducer generator.

    The transmitter accommodates both the pb-208 or pb-308 probes.  Any of these probes can easily mount within any cleaning tank for continuos monitoring.

    The bx-502's unique design makes it a very stable and reliable monitoring tool for most ultrasonic and megasonic cleaning applications.


    Download Manual
    Transmitter.pdf
    Specifications
    Energy Output 4 to 20 mA, non-isolated
    0 to 10 Vdc
    Energy Range Scalable
    Energy Accuracy ±0.2%
    Frequency Output 4 to 20 mA, non-isolated
    0 to 10 Vdc
    Frequency Range 0 to 5 MHz (5000 kHz)
    Frequency Accuracy ±1.0 kHz
    Input 22 to 36 Vdc, Probe
    Case Materials Aluminum with polyurethane baked enamel paint
    Probe Materials bx-208:   EPDM sphere, s.s. or Teflon tube, Quartz lens
    bx-308:   Quartz
    Cable:     PVC or Teflon
    Click HERE to see the Probe Material Chemical Table.
    Operating Temperatures 1° to 100° C (33° to 392° F)
    Dimensions 4.375" W x 5.125" L x 1.938" H
    (2.938" H with DIN Rail Mount)
