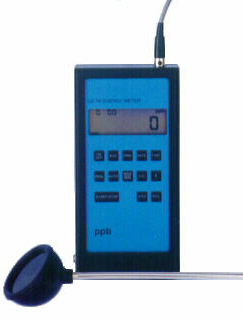

Megasonic Energy Meter (500 kHz to 5 MHz)



"Smart cavitation meters for your cleaning tanks"
Measures both cavitation energy and frequency in your megasonic tanks, which allow you to:

  • measure your cleaning tank performance
  • set your tank energy level
  • establish tank to tank uniformity
  • map the energy variations in your tank
The Megasonic Energy Meters (500 kHz to 5 MHz) are precise instruments for measuring megasonic and cavitation energy density, as well as megasonic frequency. The systems measure energy density at a given point in time and space in a single fixed direction in the tank.

The megasonic meters are simple and easy to use yet contains sophisticated electronics for data storage, retrieval and analysis. Readings are processed 1.5 times per second for fast accurate display on the front panel LCD.

In "auto mode" the unit will gather statistical parameters including average, standard deviation, minimum and maximum readings.

This allows you to establish several strategies to characterize a tank. Data collection strategies include:

• Measuring energy variations at a given point in the tank as a function of time.

• Mapping a tank by ‘walking’ the probe at a fixed depth under the surface of the tank. Click HERE to see an example figure obtained with the Ultrasonic Energy Meter.

• Comparing average energy from tank to tank, over the life of a tank, or unloaded versus loaded with parts to be cleaned.




Download Operations Manual
Manual501.pdf
Specifications
Energy Range 0 to 255 w/in2 X 5
Energy Accuracy ±0.5%
Energy Display Resolution 1.0 w/in
Frequency Range 500 kHz to 5 MHz
Frequency Accuracy ±1.0 kHz
Freq. Display Resolution ±0.1 kHz
Display Custom LCD
Memory 100 sets: loc., date, time, avg., max,min, DT, freq.
Output Computer or Serial printer interface
(9600, 8,1, n, p)
Input Standard 7.2-volt battery charger, Probe
Case Materials Aluminum with polyurethane baked enamel paint
Probe Materials See Probe page.  Click HERE to see the Probe Material Chemical Table.
Operating Temperatures 1° to 100° C (33° to 392° F)
Power One 7.2-volt sealed Ni-MH rechargeable battery
Weight 2 lb. Complete
Case Dimension 4" W x 8" L x 2" H
